U Type Anchor Base to Concrete for Timber Posts Penetration Galvanising Color Coating

Anchor Base to Concrete – U Type

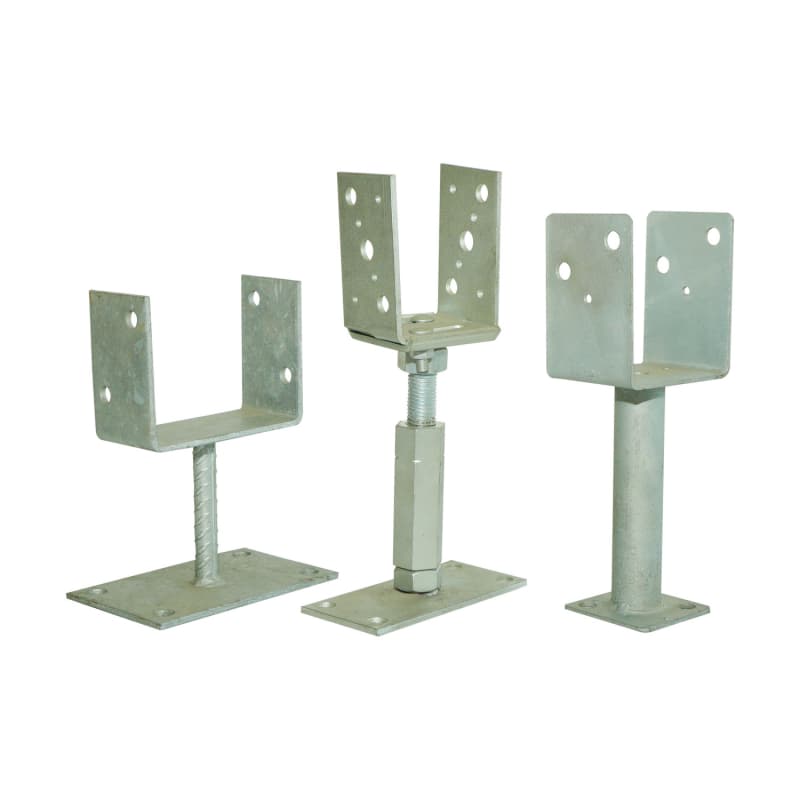

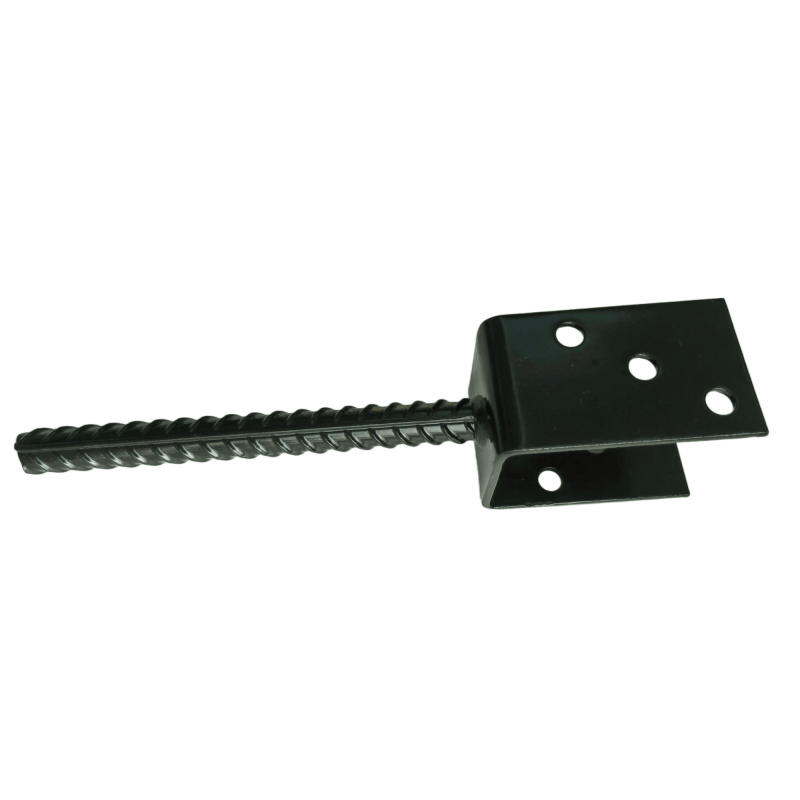

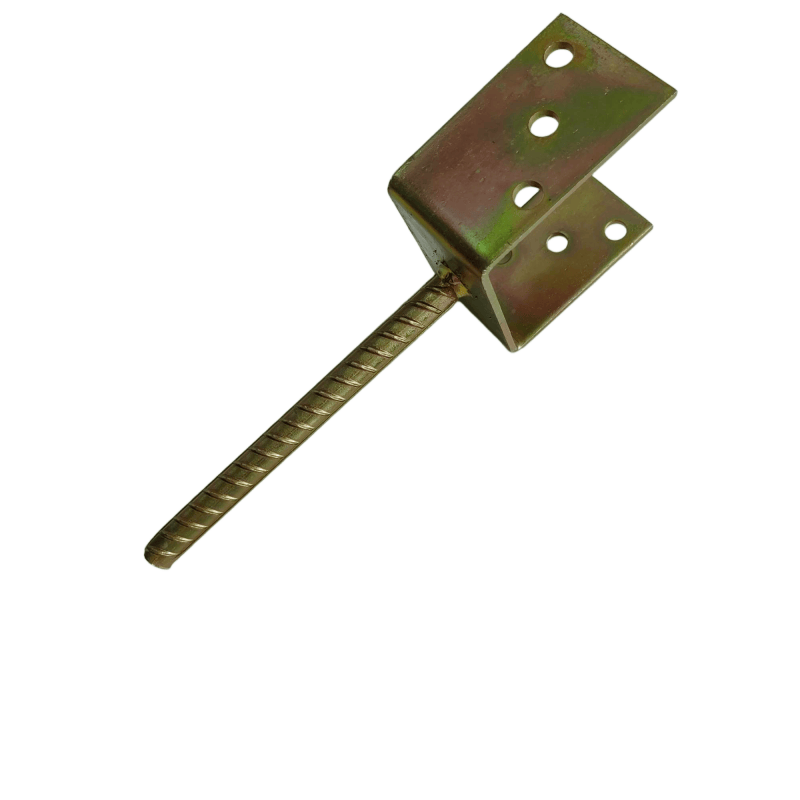

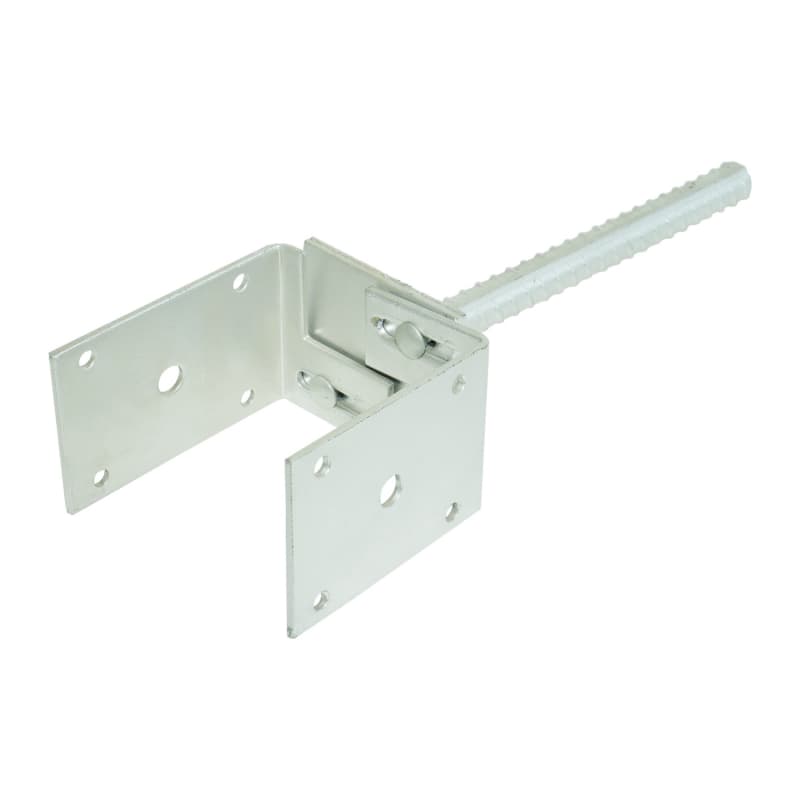

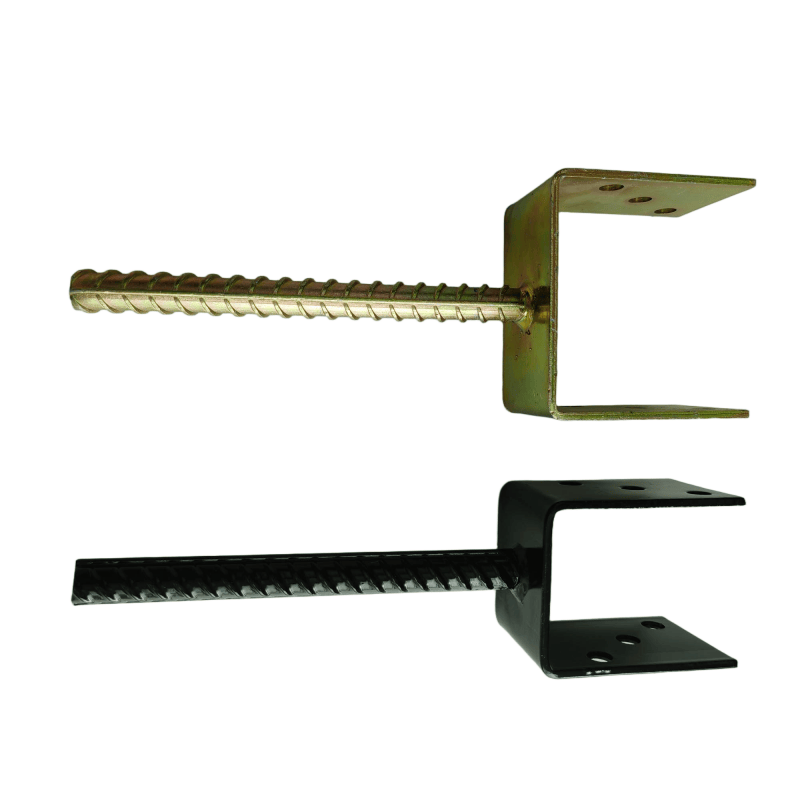

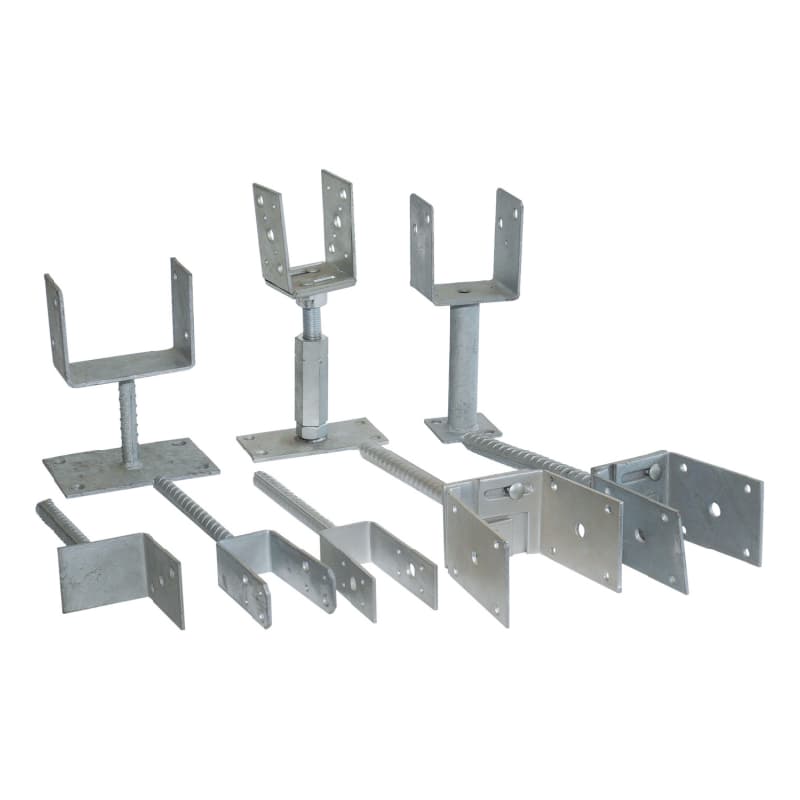

The U Type Anchor Base to Concrete is a heavy-duty steel connector designed to securely fix timber or steel posts to concrete foundations.
It provides strong vertical load support while keeping the post elevated from the concrete surface, helping to reduce moisture exposure and extend service life.

This anchor base is widely used in outdoor and structural applications where stability, durability, and accurate post positioning are required.

Basic Specifications (Overview)

Type: U Shape Anchor Base to Concrete

Material: Carbon steel

Thickness: 4.0 mm

Surface Finish: Galvanized (HDG or electro-galvanized available upon request)

Fixing Method: Anchored into concrete (anchor bolt / threaded rod)

Installation: Suitable for cast-in or post-installed concrete foundations

Customization: Sizes and finishes can be customized based on project requirements

Chat Message Mailbox

Product Description

Partial specifications

Model Description	Inner Size (mm)	Thickness (mm)
Anchor base to concrete type U	60 × 60	4
Anchor base to concrete type U	80 × 80	4
Anchor base to concrete type U	90 × 80	4
Anchor base to concrete type U	100 × 60	4
Anchor base to concrete type U	100 × 80	4
Anchor base to concrete type U	100 × 100	4
Anchor base to concrete type U	120 × 60	4
Anchor base to concrete type U	120 × 100	4
Anchor base to concrete type U	120 × 120	4
Anchor base to concrete type U	140 × 100	4
Anchor base to concrete type U	140 × 120	4

APPLICATION

Application Scenarios

U Type Anchor Bases to Concrete are commonly used in:

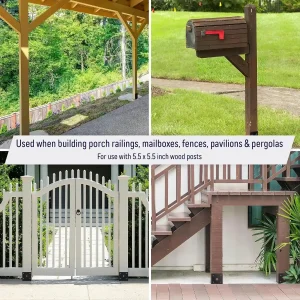

Timber post installation for pergolas, carports, decks, and fencing

Garden and landscaping structures, such as gazebos and outdoor shelters

Residential and commercial construction, where posts need to be securely fixed to concrete slabs or footings

Prefabricated structures, providing fast and accurate post alignment

Outdoor projects requiring corrosion protection and long-term stability

These anchor bases ensure strong load transfer to the concrete foundation while maintaining precise post positioning and structural safety.

U ground anchor

OUR FACTORY

QUALITY CONTROL

CERTIFICATION

EXHIBITION

SHIPPING

map-btm

FAQ

Question	Answer
Do you support OEM / ODM for Post Base	Yes, OEM and ODM are supported. We can customize size, length, thickness, and surface treatment according to your drawings or requirements.
Can you provide samples?	Yes. Samples can be provided for quality testing
How can we get samples from you?	Free samples are available. You only need to cover the freight cost
What is your MOQ?	MOQ depends on the size and specification.Most items MOQ is one container. Please contact us with your requirements for confirmation.
What certifications do you have?	Our factory operates under BSCI. With multiple production lines, different products comply with ISO standards, EN 1090 EXC-2, and CE requirements. Products can also be supplied according to customer certification requirements if needed.
What are your payment terms?	T/T: 30% prepayment, 70% balance paid against copy of B/L.
How about the delivery time?	Normally 30–45 days after receiving the deposit. If you have special delivery time requirements, please let us know in advance.
What packaging options do you offer?	Bulk in plywood pallets, cartons and plywood pallets, bulk in metal pallets or packaging according to your specific requirements.
What shipping methods are available?	Sea freight is the most common method. Other shipping methods can be arranged upon request.
Do you provide after-sales support?	Yes. We provide professional after-sales support and timely solutions to ensure customer satisfaction.
