GROUND SCREW

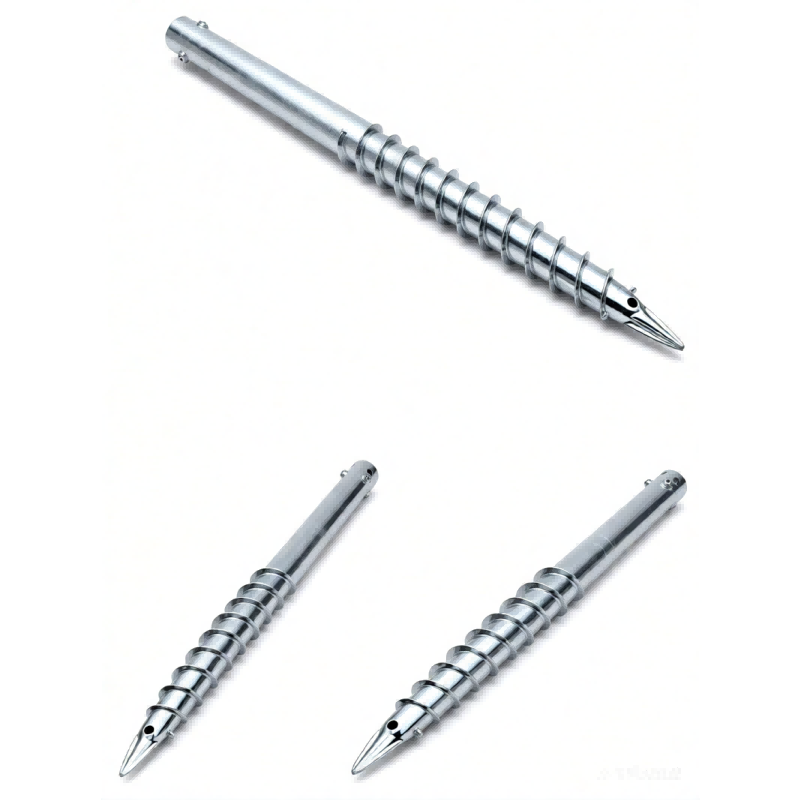

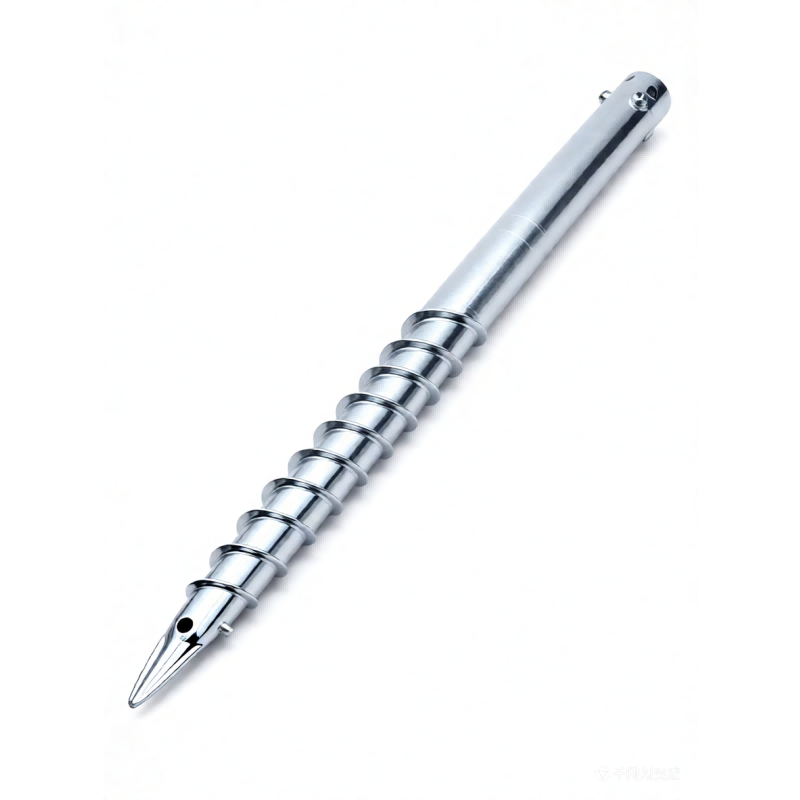

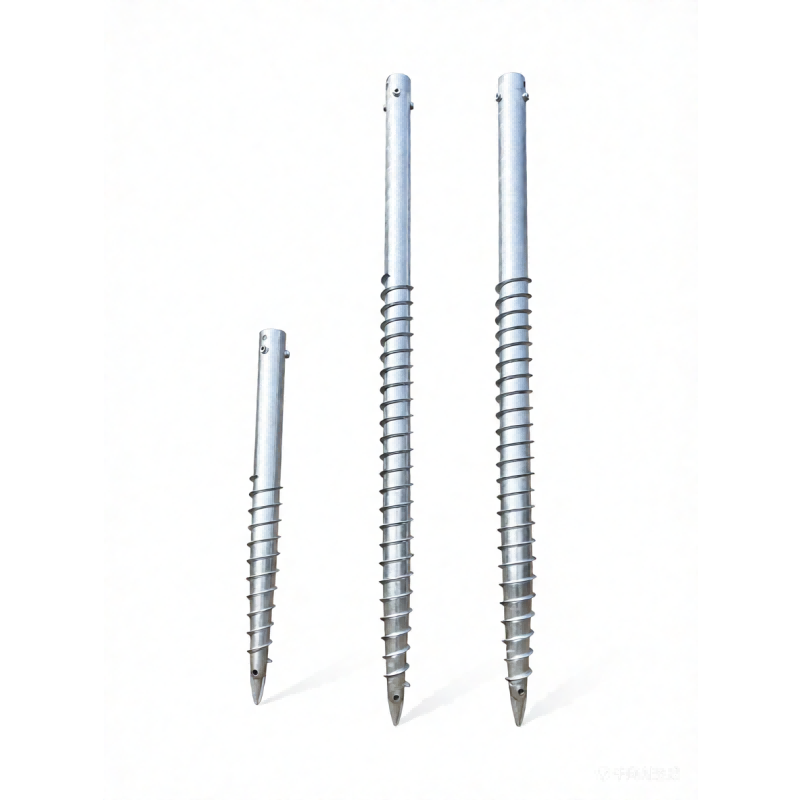

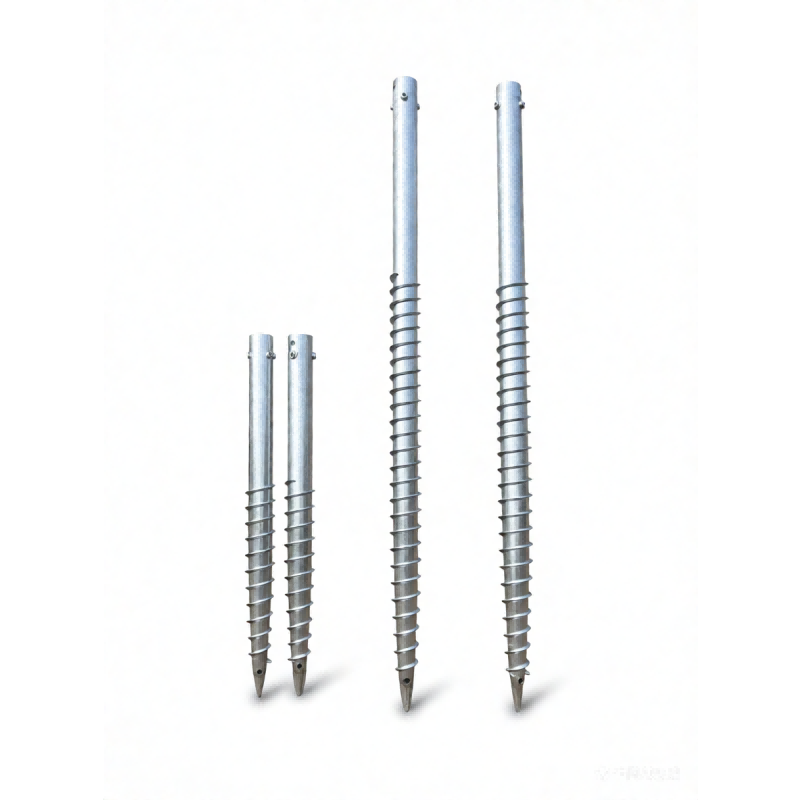

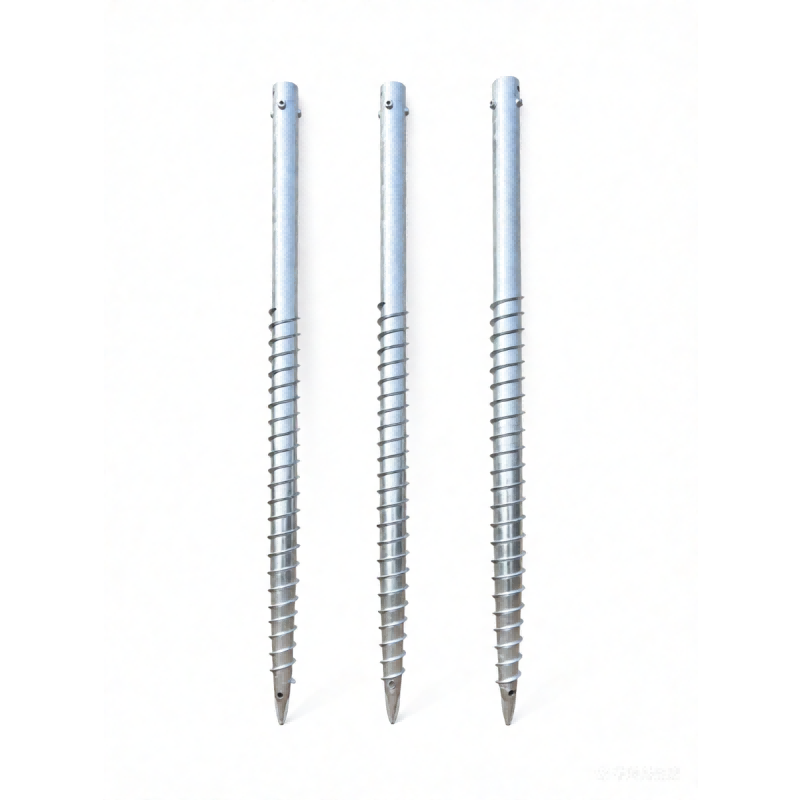

The G Ground Screw (open tube type) is a versatile screw foundation designed for flexible ground anchoring solutions.
With a hollow top end without welded plate, it allows various connection options using brackets or customized fixing systems.

Made from Q235 carbon steel with hot-dip galvanizing, it offers reliable load performance and corrosion resistance.
Suitable for fencing, solar mounting structures, signage and other ground-supported applications.

Basic Specifications

Product Type: G Ground Screw (Open Tube / Hollow Type)

Outer Diameter: Ø48 / 60 / 68 / 76 / 89 / 114 mm

Length Range: 600 – 3500 mm

Material: Q235 Carbon Steel

Wall Thickness: 2.5 – 4.0 mm

Bolt / Nut Size: M10 / M12 / M14 / M16 (uniform distribution)

Chat Message Mailbox

Product Description

Product	Ground Screw
Application	Construction
Material	Steel
Size	Customized/ Based on customers’ drawings
Surface Treatment	HDG
Package	Carton/Wood Pallet/ Metal Pallet

Partial specifications:

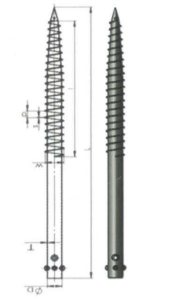

Item	Reference Image	Specification Range
Product Type		G Ground Screw (Open Tube / Hollow Type)
Outer Diameter		Ø48 / 60 / 68 / 76 / 89 / 114 mm
Length		600 – 3500 mm
Material		Q235 Carbon Steel
Wall Thickness		1.8 – 4.0 mm
Bolt / Nut Size		M10 / M12 / M14 / M16 /Customized
Surface Treatment		HDG≥50 μm
Pull-out Resistance		20.3 – 28.5 kN
Bearing Capacity		35 – 40 kN
Horizontal Torsion Resistance		8 – 10.5 kN
Application		Solar mounting, fencing, buildings, bridges, signage

APPLICATION

This type of ground screw is widely used for wooden fence posts and light outdoor structures where fast installation and reliable ground anchoring are required.

The screw shaft is driven directly into the soil, with the helical threads providing strong pull-out resistance and lateral stability.
The open tube top with U plate allows direct fixing of wooden posts without concrete foundations, making it suitable for temporary or permanent fencing systems.

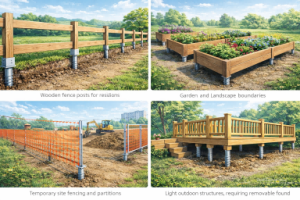

Typical applications include:

Wooden fence posts for residential and agricultural fencing
Garden and landscape boundaries
Temporary site fencing and partitions
Light outdoor structures requiring removable foundations

This solution is especially suitable for projects that require clean installation, minimal ground disturbance, and easy removal or repositioning.

OUR FACTORY

QUALITY CONTROL

CERTIFICATION

EXHIBITION

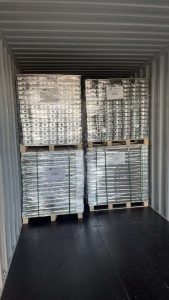

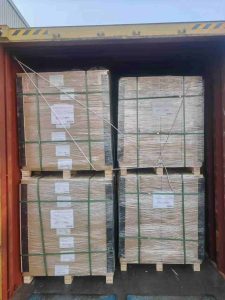

SHIPPING

map-btm

FAQ

Question	Answer
Do you support OEM / ODM for M Ground Screw?	Yes, OEM and ODM are supported. We can customize size, length, thickness, flange design, and surface treatment according to your drawings or requirements.
Can you provide samples?	Yes. Samples can be provided for quality testing
How can we get samples from you?	Free samples are available. You only need to cover the freight cost
What is your MOQ?	MOQ depends on the size and specification of the ground screw.Most items MOQ is one container. Please contact us with your requirements for confirmation.
What certifications do you have?	Our factory operates under BSCI. With multiple production lines, different products comply with ISO standards, EN 1090 EXC-2, and CE requirements. Products can also be supplied according to customer certification requirements if needed.
What are your payment terms?	T/T: 30% prepayment, 70% balance paid against copy of B/L.
How about the delivery time?	Normally 30–45 days after receiving the deposit. If you have special delivery time requirements, please let us know in advance.
What packaging options do you offer?	Bulk in plywood pallets, cartons and plywood pallets, bulk in metal pallets or packaging according to your specific requirements.
What shipping methods are available?	Sea freight is the most common method. Other shipping methods can be arranged upon request.
Do you provide after-sales support?	Yes. We provide professional after-sales support and timely solutions to ensure customer satisfaction.
