Fence Post Spike Anchor Square HDG or Penatration Galvanising

Fence Post Spike Anchor Square HDG or Penatration Galvanising

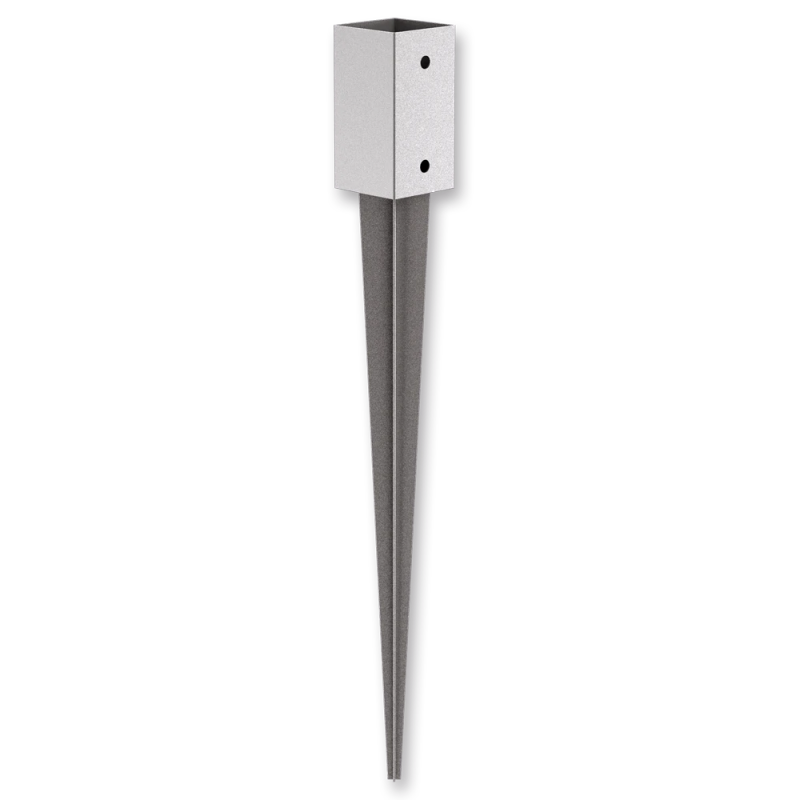

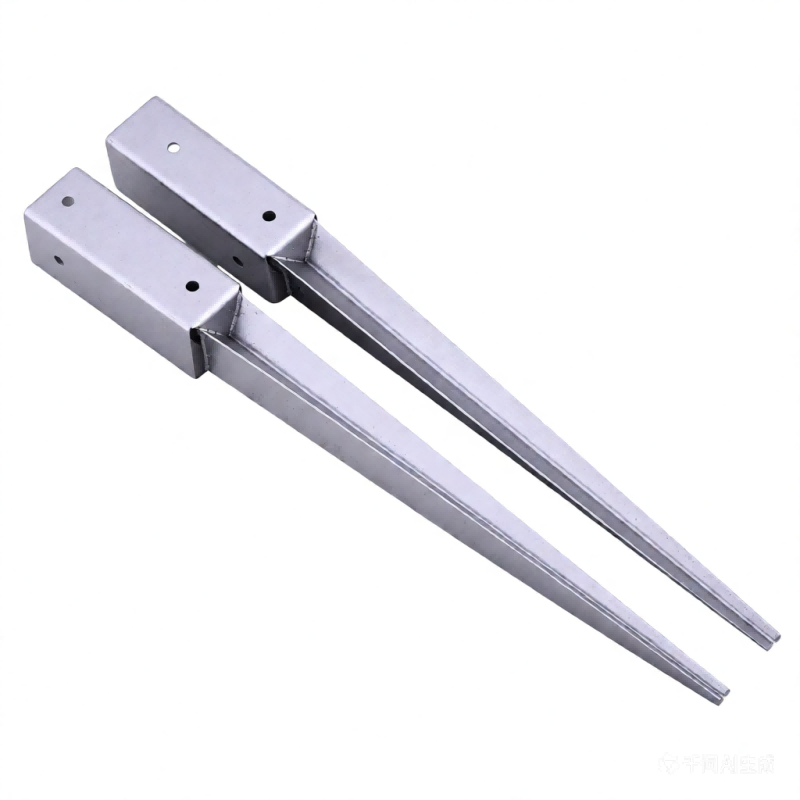

Square Fence Post Spike Anchor is a steel ground fixing solution designed for the secure installation of square wooden posts without the use of concrete.

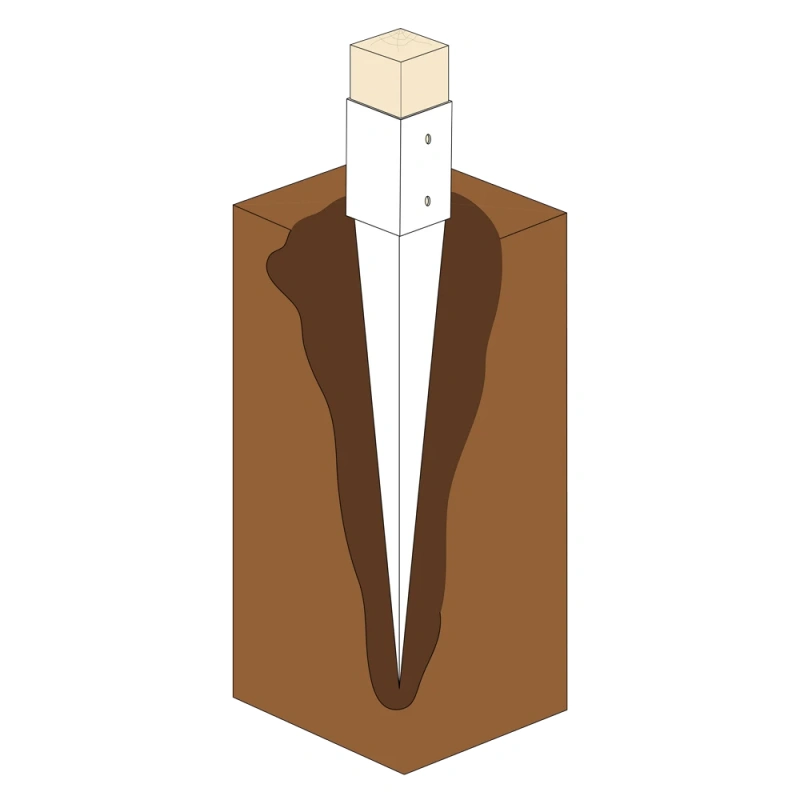

The anchor is driven directly into the ground, ensuring fast installation, accurate post positioning, and reliable load transfer.

Manufactured from carbon steel and protected by penetration galvanizing or HDG, the product offers enhanced corrosion resistance for long-term outdoor applications.
Standard bolt hole configuration allows firm mechanical fixation of timber posts, making it suitable for fencing systems, landscaping structures, and light-duty outdoor constructions.

Specifications

Material: Carbon Steel

Surface Treatment: Penetration Galvanizing/HDG

Post Section: Square

Installation Method: Ground driven

Hole Diameter: Ø11 mm

Hole Quantity: 4 holes (standard)

Application Area: Fencing, garden structures, posts & supports

Customization: Sizes and thicknesses available upon request

Chat Message Mailbox

Product Description

Product	Square Fence Post Spike Anchor
Application	Construction
Material	Steel
Size	Customized/ Based on customers’ drawings
Surface Treatment	HDG/Penatration Galvanising
Package	Carton/Wood Pallet/ Metal Pallet

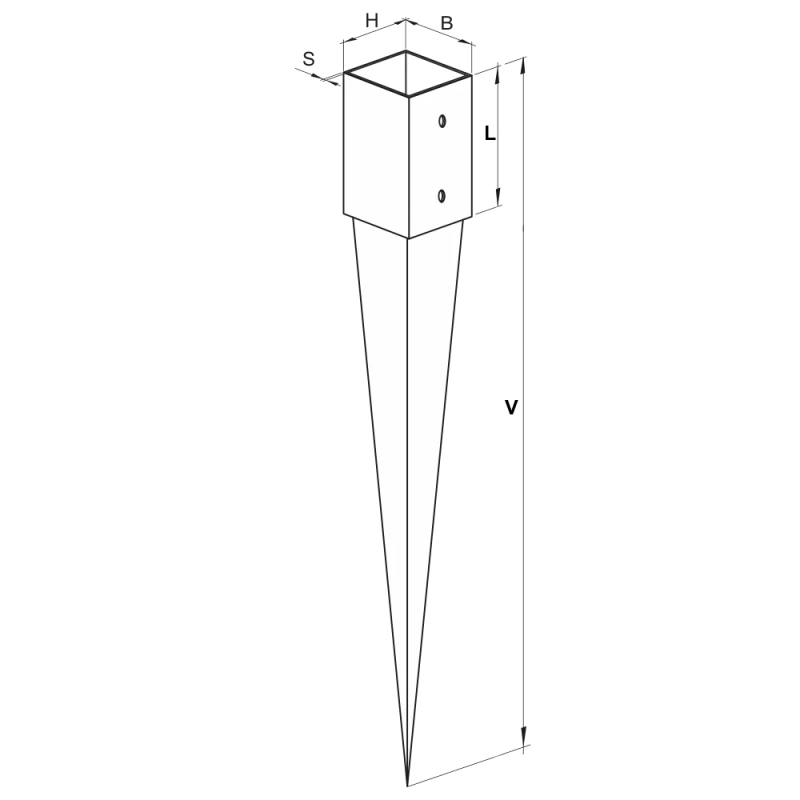

Partial specifications:

Product Name	Fence Post Spike Anchor – Square
Post Size	70×70 mm / 100×100 mm / 120×120 mm
Total Height (H)	700 mm / 1000 mm / 1200 mm
Spike Length (B)	750 mm / 900 mm
Steel Thickness (S)	2.0 mm
Material	Carbon Steel
Surface Finish	Penetration Galvanizing/HDG
Bolt Holes	Ø11 mm × 4
Installation Method	Ground driven
Application	Fence posts, garden & outdoor structures

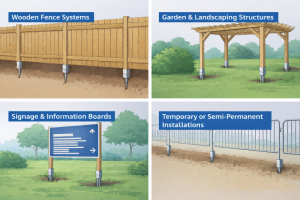

APPLICATION

Square Fence Post Spike Anchors are suitable for a wide range of light-duty outdoor installations where fast installation and stable post fixing are required.

Typical Applications include:

Wooden Fence Systems
Used for residential and commercial fencing projects to secure square timber posts without concrete foundations.

Garden & Landscaping Structures
Ideal for garden fences, pergolas, small partitions, and decorative outdoor frameworks.

Signage & Information Boards
Provides stable ground support for signposts, direction boards, and notice boards in parks and public areas.

Temporary or Semi-Permanent Installations
Suitable for applications requiring easy installation, relocation, or replacement, such as temporary barriers or event fencing.

OUR FACTORY

QUALITY CONTROL

CERTIFICATION

EXHIBITION

SHIPPING

map-btm

FAQ

Question	Answer
Do you support OEM / ODM for Post Spike Anchor	Yes, OEM and ODM are supported. We can customize size, length, thickness, flange design, and surface treatment according to your drawings or requirements.
Can you provide samples?	Yes. Samples can be provided for quality testing
How can we get samples from you?	Free samples are available. You only need to cover the freight cost
What is your MOQ?	MOQ depends on the size and specification.Most items MOQ is one container. Please contact us with your requirements for confirmation.
What certifications do you have?	Our factory operates under BSCI. With multiple production lines, different products comply with ISO standards, EN 1090 EXC-2, and CE requirements. Products can also be supplied according to customer certification requirements if needed.
What are your payment terms?	T/T: 30% prepayment, 70% balance paid against copy of B/L.
How about the delivery time?	Normally 30–45 days after receiving the deposit. If you have special delivery time requirements, please let us know in advance.
What packaging options do you offer?	Bulk in plywood pallets, cartons and plywood pallets, bulk in metal pallets or packaging according to your specific requirements.
What shipping methods are available?	Sea freight is the most common method. Other shipping methods can be arranged upon request.
Do you provide after-sales support?	Yes. We provide professional after-sales support and timely solutions to ensure customer satisfaction.
